Galden HT PFPE (Perfluoropolyether) fluorinated solutions are a line of high-performance, inert, and dielectric heat transfer fluids. With boiling points ranging from 55°C to 270°C, these fluids offer a versatile range of options to optimize thermal management performance. They are specifically engineered for the semiconductor and electronics industries, where non-conductive, low-viscosity fluids are required to withstand extreme heat in heat exchange systems, server cooling, and test equipment. Galden HT fluids provide a safe, low-maintenance solution that ensures precise temperature control without compromising the integrity of structural materials.

• Advantage: No corrosion or chemical reactions with structural materials and will not generate or decompose into residues.

• Benefit: Extended Equipment Lifespan: Protects sensitive components and prevents circulating pump failure caused by fluid degradation or corrosion.

• Advantage: High boiling point specifications reduce evaporation losses while remaining safe to use at extreme temperatures.

• Benefit: Enhanced Operational Safety: Non-flammable and thermally stable, ensuring a secure environment for high-heat industrial processes.

• Advantage: Resistant to acid gases, alkalis, alcohols, detergents, and biofuels.

• Benefit: Reliable Performance in Harsh Environments: Ideal for complex semiconductor manufacturing processes where exposure to various chemical agents is common.

coa

Semiconductor Manufacturing Used as a primary heat transfer fluid in etchers, ion implanters, and photolithography equipment.

Electronics Testing Ideal for thermal shock testing and component reliability testing due to its dielectric nature.

Server & Data Center Cooling Provides efficient, non-conductive immersion cooling for high-density servers and electronics.

Extreme Heat Exchange Systems Applicable in systems requiring precise temperature control and resistance to radiation or gamma rays.

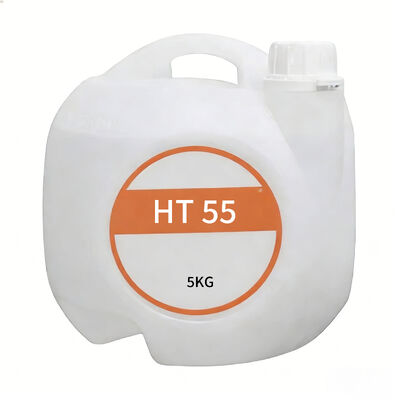

• Standard Packaging: 5kg, 10kg, or 25kg high-purity fluorinated bottles or drums.

• Shipping: Classified as non-hazardous for most transport modes (verify per specific grade SDS).

• Storage: Store in a cool, dry, well-ventilated area. Keep containers tightly closed when not in use to prevent contamination and maintain high purity levels.

PFPE Fluid; Perfluoropolyether; Fluorinated Heat Transfer Fluid; Dielectric Cooling Liquid; Galden HT Series.

• Chiller Systems: Specifically designed for use in industrial heat exchangers.

• Pump Seals: Compatible with most high-end fluorinated elastomers used in circulating pumps.

• Electronic Components: Safe for direct immersion of semiconductors and PCB boards.

Q: Will Galden HT fluids damage my circulating pumps over time? A: No. These fluids are specifically designed to prevent degradation or corrosion that typically leads to pump failure.

Q: Is it safe to use this fluid for immersion cooling of live electronics? A: Yes, Galden HT fluids are dielectric and non-conductive, making them safe for direct contact with powered electronic components.

Q: How does the "high boiling point specification" benefit my operations? A: It reduces evaporation losses significantly, which lowers fluid consumption costs without compromising cooling performance.

Q: Are these fluids environmentally compliant? A: Galden HT fluids are bromine-free and categorized as low VOC, aligning with modern industrial environmental standards.

Q: Do these fluids leave any residue after evaporation? A: No, they are designed to not generate or decompose into residues, ensuring the cleanliness of your high-precision equipment.
